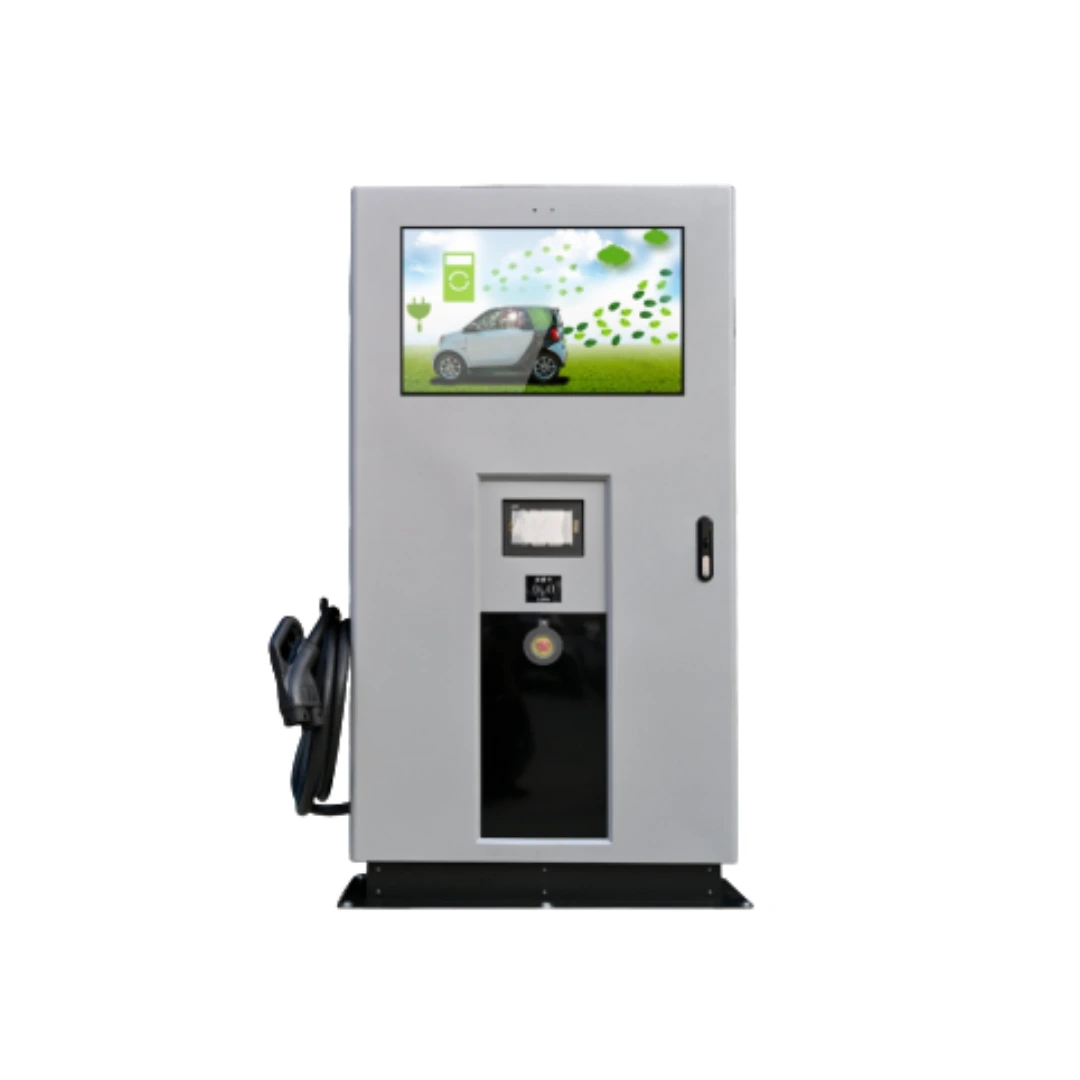

C Series DC Fast EV Charger with 32" Advertising Screen | 30kW / 40kW / 60kW Dual Guns EV Charging Station

Commercial Floor-mounted DC Charging Pile, OCPP1.6, IP54, Support Card Swipe / APP / Manual Start

UC series commercial DC fast EV charging station integrates a 32-inch outdoor advertising display with EV charger, helping you gain extra advertising revenue while providing charging service. Available in 30kW,40kW,60kW power options with 2 charging guns, auto-switch between fast and slow charging. Wide output voltage 200–750V (optional up to 1000V), compatible with most electric vehicles. It supports AC input and optional DC input for wider application scenarios. Features low standby power consumption <10W, high power density compact cabinet, efficient air duct cooling, full safety protection. Operation modes include IC card swipe, APP control and manual start. Communication: CAN/485/Ethernet, optional GPRS/4G, OCPP 1.6, CHAdeMO, ISO15118 protocol supported. IP54 outdoor waterproof grade, works steadily from -20℃ to +50℃. Customizable UI interface for your brand.

Model:

UC30750

Inquiry

Write a Review

Product Introduction

Integrate the 32" advertising screen with charger, bring extra advertising revenue
Low standby power consumption＜10W, cut operating cost
Wide output voltage range: 200V~750V (200-1000V optional), compatible with most electric vehicles
Support both AC and DC input, more application scenarios
High power density, compact cabinet, save installation space and logistics cost
Professional air duct cooling design, good heat dissipation, stable & reliable performance
Complete multi-layer safety protection
Flexible, customizable UI interface
Dual charging guns, auto switch between fast charge / slow charge
3 working modes: Swipe IC card, APP control, manual operation
IP54 outdoor protection grade, wide working temperature -20℃ ~ +50℃
Rich communication: CAN/485/Ethernet, optional GPRS/4G
Multiple protocols: OCPP1.6, CHAdeMO 2.0, ISO15118, DIN 70121
Built-in 32-inch outdoor HD advertising screen with stereo speaker, WIFI control

parameter

Item	UC 30750	UC 40750	UC 60750
Model	UC 30750	UC 40750	UC 60750
Power	30KW	40KW	60KW
Input voltage	AC 300~470V/480V optional	AC 300~470V/480V optional	AC 300~470V/480V optional
Frequency	45~65HZ	45~65HZ	45~65HZ
Output voltage	200~750V（200-1000V optional）	200~750V（200-1000V optional）	200~750V（200-1000V optional）
Input Current	45A	60A	95A
Output current	100A	120A	200A
No. of guns	2	2	2
Charging way	Quick or Slow charge automatic switch	Quick or Slow charge automatic switch	Quick or Slow charge automatic switch
charging mode	SWIPE CARD, APP. MANUAL	SWIPE CARD, APP. MANUAL	SWIPE CARD, APP. MANUAL
Cable length	5M	5M	5M
Interface	7"COLOR TOUCH SCREEN+IC CARD CONTACTLESS CARD READER	7"COLOR TOUCH SCREEN+IC CARD CONTACTLESS CARD READER	7"COLOR TOUCH SCREEN+IC CARD CONTACTLESS CARD READER
Network connection	Standard configuration:CAN/485/Ethernet Selective configuration:GPRS/4G	Standard configuration:CAN/485/Ethernet Selective configuration:GPRS/4G	Standard configuration:CAN/485/Ethernet Selective configuration:GPRS/4G
Communication protection grade	IP54	IP54	IP54
Size(mm)	900×270×1800	900×270×1800	900×270×1800
Weight	150kg	150kg	150kg
Temperature	-20℃～+50℃	-20℃～+50℃	-20℃～+50℃
Operating Humidity	5%-90%RH,non-condensing	5%-90%RH,non-condensing	5%-90%RH,non-condensing
Standard	EN61851-1, JEVSG 105	EN61851-1, JEVSG 105	EN61851-1, JEVSG 105
Protocol	CHAdeMO 2.0/ DIN 70121,OCPP 1.6 (JSON or SOAP),ISO 15118	CHAdeMO 2.0/ DIN 70121,OCPP 1.6 (JSON or SOAP),ISO 15118	CHAdeMO 2.0/ DIN 70121,OCPP 1.6 (JSON or SOAP),ISO 15118
Altitude	2000M	2000M	2000M
Advertising screen	32"outdoor advertising screen /WIFI control	32"outdoor advertising screen /WIFI control	32"outdoor advertising screen /WIFI control

Application Scenario

C Series DC Fast EV Charger with 32 Advertising Screen | 30kW / 40kW / 60kW Dual Guns EV Charging Station 3

美图设计室变清晰_2024_11_11 (5) (2)

C Series DC Fast EV Charger with 32 Advertising Screen | 30kW / 40kW / 60kW Dual Guns EV Charging Station 5

美图设计室变清晰_2024_11_11 (3)
