PWM Solar Charge Controller 30A 40A 12V 24V Negative Grounded Bluetooth PVChargePro APP P2430N 1
PWM Solar Charge Controller 30A 40A 12V 24V Negative Grounded Bluetooth PVChargePro APP P2430N 1

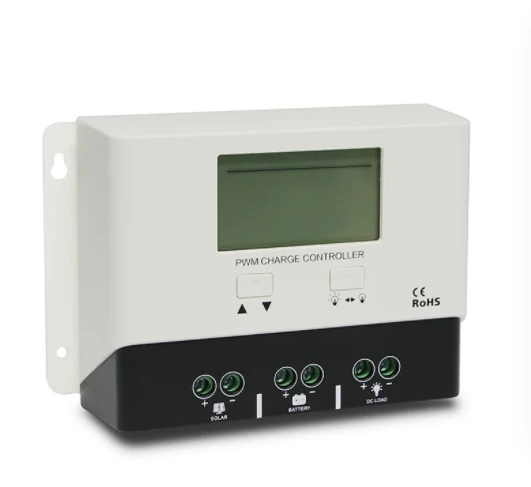

PWM Solar Charge Controller 30A 40A 12V 24V Negative Grounded Bluetooth PVChargePro APP P2430N

PWM solar charge controller 30A/40A auto 12V/24V battery Bluetooth 5V 1A USB control solar systems.

This P2430N PWM solar charge controller is a smart solar regulator designed for off-grid solar power systems. It supports 12V/24V automatic battery recognition and offers 30A or 40A charging capacity. Equipped with built-in Bluetooth, you can check real-time data and adjust parameters conveniently via the PVChargePro mobile APP.

The controller features an LCD display, 5V 1A USB output port and multiple DC load working modes including light control and time control. With negative grounded design and comprehensive multi-protection circuits, it can protect batteries from reverse polarity, overcharge, over-discharge, short circuit and overheating.

It works with flooded, AGM, gel and lithium batteries, widely applied in RV, caravan, home off-grid solar, remote farm power supply and solar street light projects. OEM & ODM services are available for bulk orders.

5.0
Model:
P2430N
power:
30A / 40A, 12V 24V auto
material:
ABS plastic + Aluminum alloy heat sink
Product Name:
PWM Solar Charge Controller
Customization:
Support OEM, ODM, logo & package customization
Model Number:
P2430N
design customization
Inquiry

    oops...!

    no product data.

    Go to homepage
    Write a Review
    Recommended max. PV power
    390W(12V) / 780W(24V) for 30A；520W(12V) /1040W(24V) for 40A
    Maximum number of PV source circuits
    1
    Maximum input and output voltage
    PV Max Open Circuit Voltage: 50V
    Product name
    PWM Solar Charge Controller
    Rated voltage
    12V / 24V Auto recognition
    Supported device type
    Solar battery charge controller
    Surge protection
    Built-in surge protection
    Ingress protection
    IP30
    Rated grid frequency
    N/A
    Max. operation altitude
    ≤3000m
    Communication
    Bluetooth
    Maximum System Voltage
    24V
    Maximum Series Fuse Rating
    40A
    Connector Type
    Screw terminal
    Rated Power
    30A / 40A
    voltage
    12V/24V auto
    Max. Efficiency
    ≥98%
    Display
    LCD Screen
    Heat Dissipation Method
    Aluminum alloy heat sink passive cooling
    Certification
    CE
    Warranty
    1 year
    Weight
    0.7kg
    Color
    White & Black
    Product shell
    ABS plastic housing
    Operating Temperature
    -20℃ ~ +55℃
    Storage Temperature
    -30℃ ~ +70℃
    Installation Method
    Wall mounted
    Communication Function
    Bluetooth, connect with PVChargePro APP
    Application
    RV, caravan, home off-grid solar system, solar street light, remote power supply
