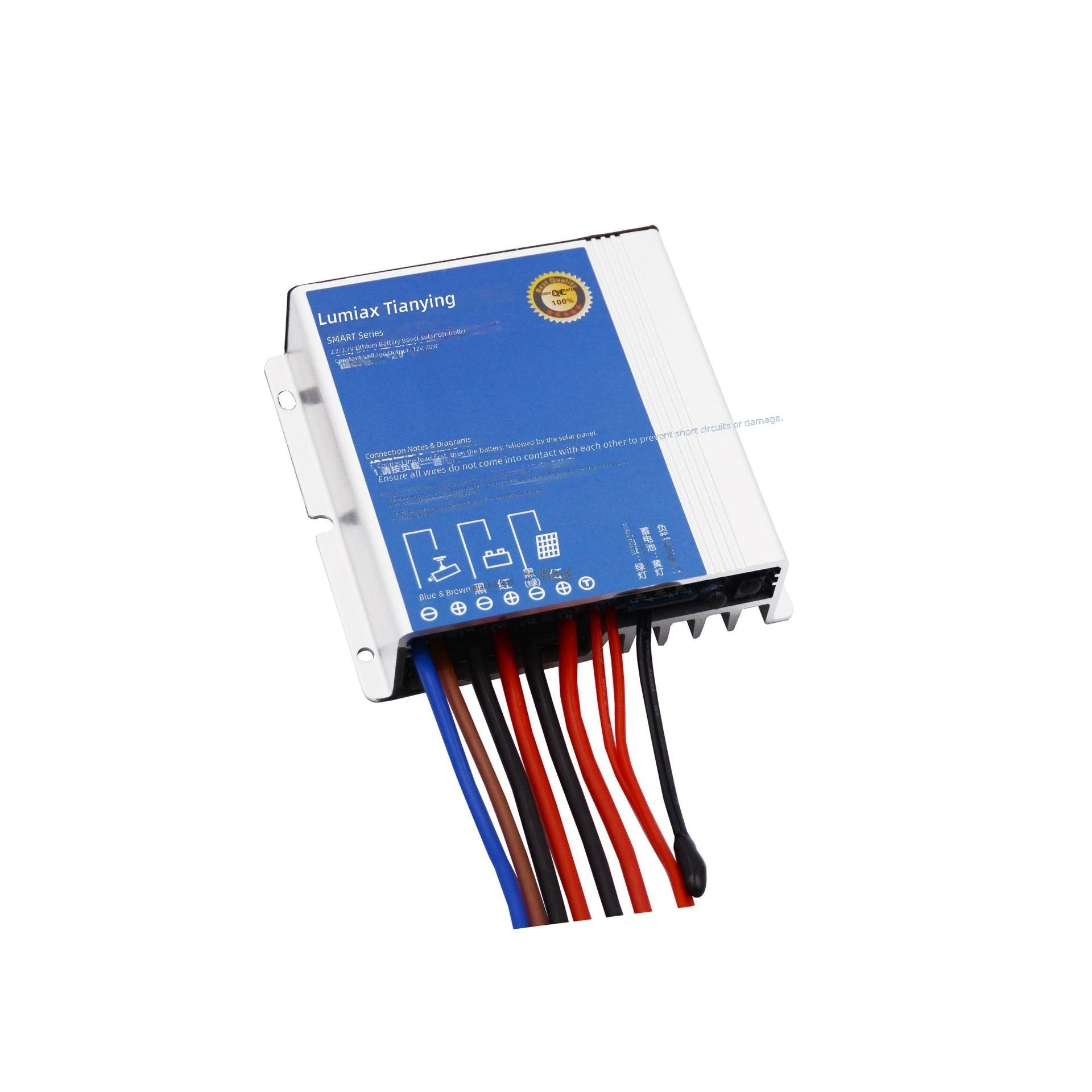

IP67 waterproof PWM solar charge controller 10A/20A, auto‑recognize 12V/24V. Support lithium, gel, AGM & lead‑acid battery. Infrared or RS485 Modbus,CE & RoHS certified.
Smart‑N5 IP67 PWM solar charge controller 10A 20A for solar street light off‑grid PV system`
The Smart-N5 series PWM solar charge controller is specially designed for off-grid solar street light systems. It supports automatic 12V/24V battery identification and is compatible with lithium, lead-acid, gel and AGM batteries. With IP67 waterproof rating, it works reliably in harsh outdoor environments. It features programmable 5-stage night dimming, multiple battery protection functions, and optional infrared remote control or RS485 Modbus communication for centralized project management. Ideal for solar street light, garden lighting and remote off-grid power projects.
5.0
like
Model:
Smart
power:
10A / 20A
material:
Plastic + Metal
Product Name:
PWM Solar Charge Controller
Brand Name:
SMUXI
Customization:
Support OEM & ODM
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Recommended max. PV power
12V:120W;24V:240W
Maximum number of PV source circuits
1
Product name
PWM Solar Charge Controller
Rated voltage
12V/24V Auto Recognition
Ingress protection
IP67
Max. operation altitude
≤2000m
Rated Power
10A/20A
voltage
12V/24V auto
Max. Efficiency
≥98%
Display
LED indicator
Protection Level
IP67
Certification
CE, RoHS
Warranty
2 years
Weight
0.35kg
Operating Temperature
-35℃ ~ +60℃
Storage Temperature
-40℃ ~ +70℃
Application
Solar street light, off-grid solar lighting system, garden light, remote area power supply
Application Scenario
Projects with a focus on optimizing initial investment and achieving a low LCOE
Commercial and Industrial (C&I) Power Plants
Installations in areas with standard environmental conditions
Projects with a focus on optimizing initial investment and achieving a low LCOE
