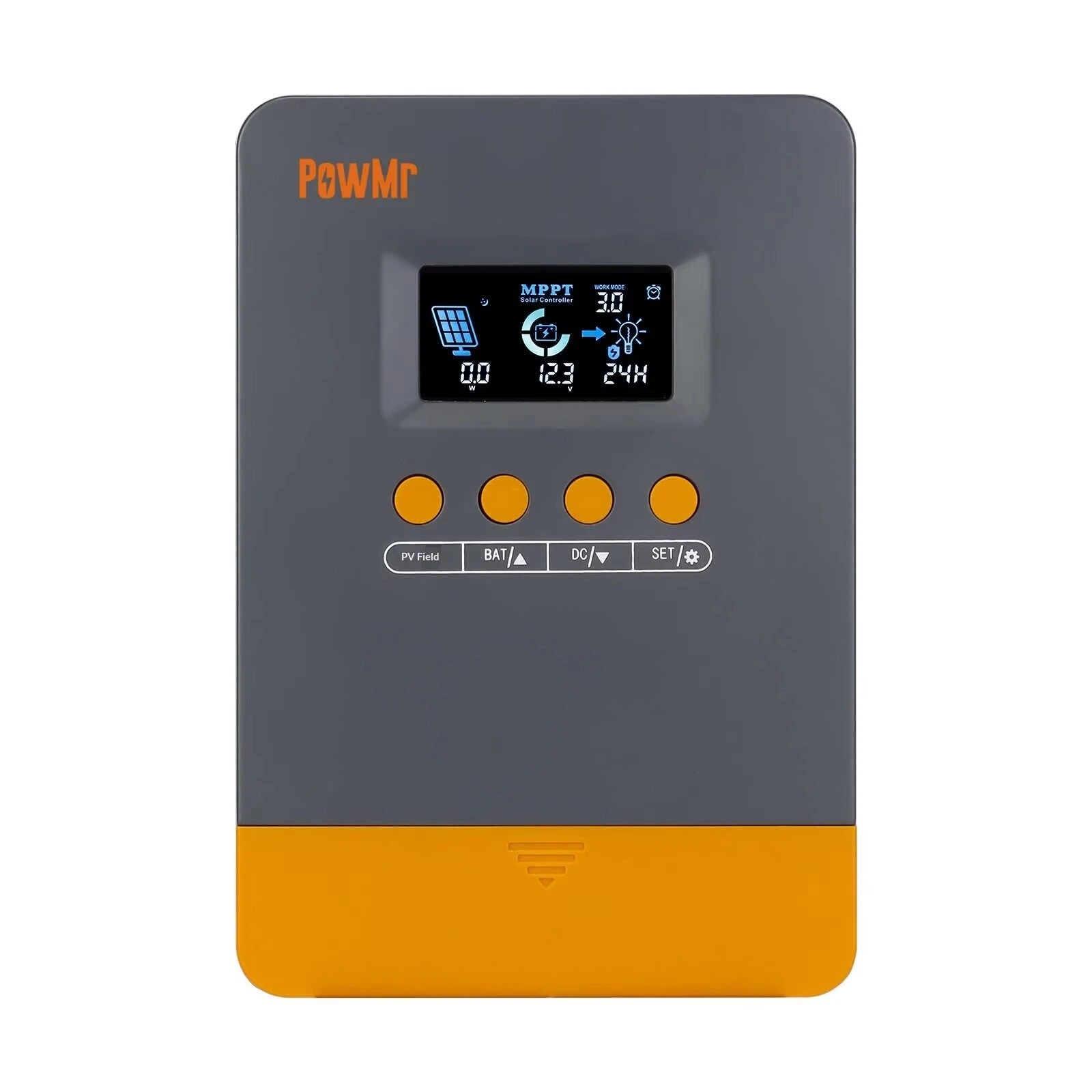

MPPT Solar Charge Controller | POW-M PRO 25A 35A 45A  POW-M PRO MPPT Solar Charge Controller 12V/24V Auto Adapt 1
MPPT Solar Charge Controller | POW-M PRO 25A 35A 45A  POW-M PRO MPPT Solar Charge Controller 12V/24V Auto Adapt 1

MPPT Solar Charge Controller | POW-M PRO 25A 35A 45A POW-M PRO MPPT Solar Charge Controller 12V/24V Auto Adapt

Wholesale MPPT Solar Charge Controller Bulk MPPT Solar Controller

The POW-M PRO Series MPPT Solar Charge Controller is a high-performance energy management solution built for 12V/24V off-grid photovoltaic systems, available in 25A, 35A and 45A rated charging current options.

Equipped with industry-leading MPPT tracking technology, this controller delivers up to 99.9% tracking efficiency and 97% peak conversion efficiency, significantly reducing power loss and maximizing solar energy utilization. It supports multiple battery types including sealed lead-acid, gel, flooded lead-acid and lithium iron phosphate (LiFePO4), and features an intelligent multi-stage charging algorithm that adjusts charging phases adaptively based on battery status, protecting battery health and prolonging cycle life.

With a clear LCD display for real-time operational data, full-range electrical protection and a durable aluminum alloy heat dissipation structure, the POW-M PRO series is widely applicable for residential off-grid systems, RVs, solar street lights, small commercial energy storage and more.

5.0
Model:
POW-M25-PRO, POW-M35-PRO, POW-M45-PRO
power:
300W-1080W (12V/24V Auto System)
material:
Aluminum Alloy Heat Sink + ABS Flame Retardant Shell
Product Name:
12V 24V MPPT Solar Charge Controller
Brand Name:
SMUXI
Customization:
Support OEM/ODM, Logo & Parameter Customization
design customization

    oops...!

    no product data.

    Go to homepage
    POW-M25-PRO_POW-M35-PRO_POW-M45-PRO_User_Manual_
    POW-M25-PRO_POW-M35-PRO_POW-M45-PRO_User_Manual_
    Recommended max. PV power
    300W – 1080W (12V/24V Auto System)
    Product name
    MPPT Solar Charge Controller
    Rated voltage
    12V / 24V Automatic Recognition
    Ingress protection
    IP32
    Rated Power
    300W – 1080W
    voltage
    12V / 24V Auto Adapt
    Max. Efficiency
    97%
    Certification
    CE, RoHS compliant
    Warranty
    12-month
    Weight
    0.5kg (25A) / 0.9kg (35A) / 1.035kg (45A)
    Dimension (L*W*H)
    160×115×51mm (25A); 195×135×65mm (35A/45A)
    Operating Temperature
    -35℃ ~ +45℃
    Storage Temperature
    -40℃ ~ +70℃
    internal resistance
    ≤ 50mΩ
    Application
    Off-grid residential solar, RV, solar street light, small commercial energy storage, standalone PV systems
