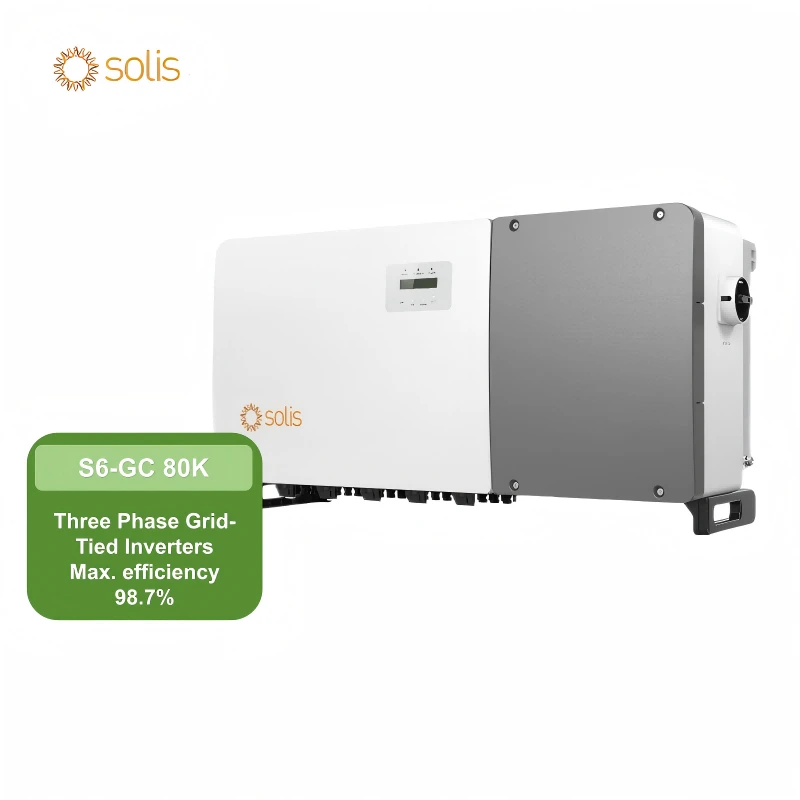

80KW Solis Three Phase Grid-Tied Inverters Cheap prices with monitoring system
Efficient
- 9 MPPTs, max. efficiency 98.8% (CEC efficiency 98.3%)
- > 1.5 DC/AC ratio
- String current up to 16A for higher capacity modules
- DC side supports "Y" connector
5.0
like
Model:
Solis-3P S6-GC 80KW -US
power:
80KW
Product Name:
Three Phase Grid-Tied Inverters
Brand Name:
Solis
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product name
80KW Solis Three Phase Grid-Tied Inverters
Rated voltage
600V
Surge protection
DC Type II / AC Type II
Ingress protection
TYPE 4X
Rated grid frequency
60Hz
Max. operation altitude
13,120 ft (4000 m)
Communication
RS485, Optional: Wi-Fi, Cellular
Cooling concept
Intelligent fan-cooling
Max. Efficiency
98.7%
Warranty
10 years
Dimension (L*W*H)
1065 × 567 × 344.5 mm
Operating Temperature
-22°F to 140°F (-30°C to 60°C )
Storage Temperature
-40°F to 176°F (-40°C to 80°C)
Application
solar stystem
Product Features
Safe & Smart
- Type 4X, C5 Anti-Corrosion Level
- External signal control function
- Integrated nighttime PID recovery for optimal module performance
- AFCI protection, proactively reduces fire risk
- High quality components from globally recognized suppliers
- Intelligent string monitoring, smart I-V curve scan
- Remote firmware upgrade with simple operation
Product Advantages
SHADE COVER
- Designed for simple and easy mounting directly on the inverter.
- Use existing hardware for mounting.
- Stainless steel design for long life and operation under extreme conditions.
- Increases inverter reliability by reducing internal operating temperature.
- Extends HMI operation life expectancy.
WIRE COVER
- Designed for simple and easy mounting on a wall or mounting plate.
- Covers PV wires from tampering.
- Stainless steel design for long life and operation under extreme conditions.
- Designed for direct 1.5” conduit connection.
- Covered under 2 years warranty.
Application Cases
Remote Area Solar Station
Household solar energy
Industrial Solar Energy
